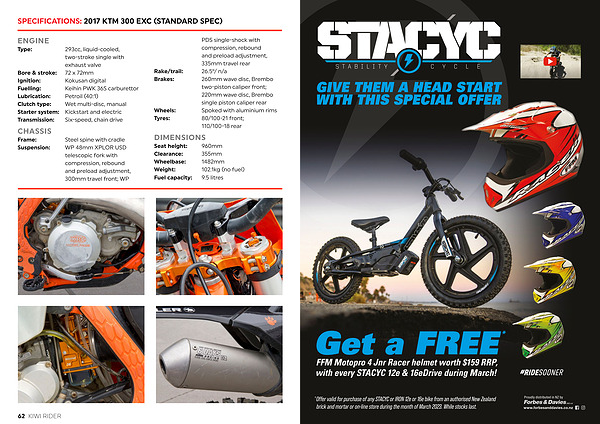

SPECIFICATIONS : 2017 KTM 300 EXC ( STANDARD SPEC )
ENGINE |
Type : |
293cc , liquid-cooled , |
two-stroke single with |
exhaust valve |
Bore & stroke : |
72 x 72mm |
Ignition : |
Kokusan digital |
Fuelling : |
Keihin PWK 36S carburettor |
Lubrication : |
Petroil ( 40:1 ) |
Clutch type : |
Wet multi-disc , manual |
Starter system : |
Kickstart and electric |
Transmission : |
Six-speed , chain drive |
CHASSIS
Frame : Suspension :
Steel spine with cradle WP 48mm XPLOR USD telescopic fork with compression , rebound and preload adjustment , 300mm travel front ; WP
PDS single-shock with compression , rebound and preload adjustment , 335mm travel rear Rake / trail : 26.5 °/ n / a Brakes : 260mm wave disc , Brembo two-piston caliper front ; 220mm wave disc , Brembo single piston caliper rear Wheels : Spoked with aluminium rims Tyres : 80 / 100-21 front ;
110 / 100-18 rear
DIMENSIONS |
Seat height : |
960mm |
Clearance : |
355mm |
Wheelbase : |
1482mm |
Weight : |
102.1kg ( no fuel ) |
Fuel capacity : 9.5 litres
