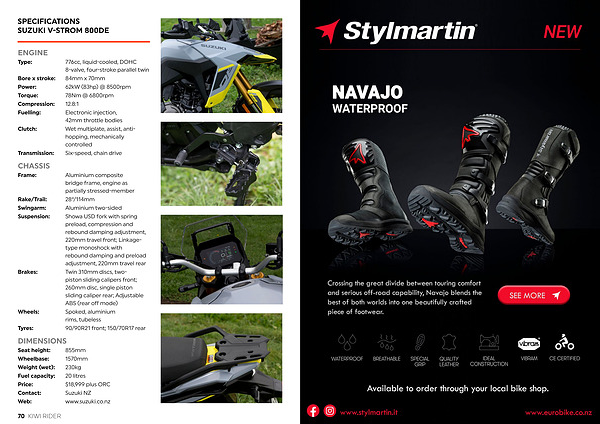

SPECIFICATIONS SUZUKI V-STROM 800DE

ENGINE

Type :

Bore x stroke : Power : Torque : Compression : 12.8:1

776cc , liquid-cooled , DOHC 8-valve , four-stroke parallel twin 84mm x 70mm 62kW ( 83hp ) @ 8500rpm 78Nm @ 6800rpm

Fuelling : Electronic injection ,

42mm throttle bodies

Clutch :

Transmission :

Wet multiplate , assist , antihopping , mechanically controlled Six-speed , chain drive

CHASSIS

Frame :

Rake / Trail : Swingarm : Suspension :

Brakes :

Wheels :

Tyres :

Aluminium composite bridge frame , engine as partially stressed-member 28 °/ 114mm Aluminium two-sided Showa USD fork with spring preload , compression and rebound damping adjustment , 220mm travel front ; Linkagetype monoshock with rebound damping and preload adjustment , 220mm travel rear Twin 310mm discs , twopiston sliding calipers front ; 260mm disc , single piston sliding caliper rear ; Adjustable ABS ( rear off mode ) Spoked , aluminium rims , tubeless 90 / 90R21 front ; 150 / 70R17 rear

DIMENSIONS
