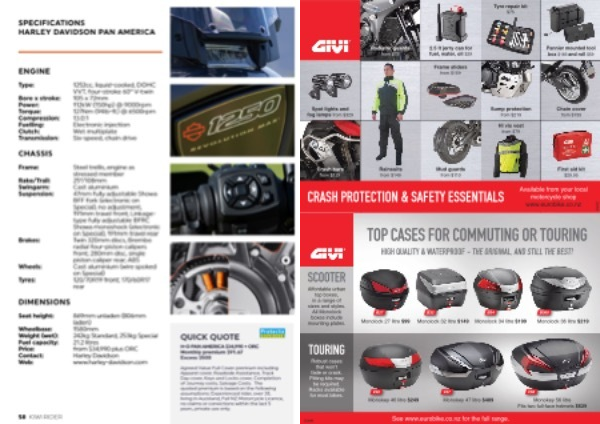

SPECIFICATIONS HARLEY DAVIDSON PAN AMERICA
ENGINE
Type : |
1252cc , liquid-cooled , DOHC |
VVT , four-stroke 60 ° V-twin |
Bore x stroke : |
105 x 72mm |
Power : |
112kW ( 150hp ) @ 9000rpm |
Torque : |
127Nm ( 94lb-ft ) @ 6500rpm |
Compression : |
13.0:1 |
Fuelling : |
Electronic injection |
Clutch : |
Wet multiplate |
Transmission : |
Six-speed , chain drive |
CHASSIS
Frame :
Rake / Trail : Swingarm : Suspension :
Brakes :
Wheels : Tyres :
Steel trellis , engine as stressed member 25 °/ 108mm Cast aluminium 47mm fully adjustable Showa BFF fork ( electronic on Special ), no adjustment , 191mm travel front ; Linkagetype fully adjustable BFRC Showa monoshock ( electronic on Special ), 191mm travel rear Twin 320mm discs , Brembo radial four-piston calipers front ; 280mm disc , single piston caliper rear ; ABS Cast aluminium ( wire spoked on Special ) 120 / 70R19 front ; 170 / 60R17 rear
DIMENSIONS
Seat height :
Wheelbase : Weight ( wet ): Fuel capacity : Price : Contact : Web :
58 KIWI RIDER
869mm unladen ( 806mm laden ) 1580mm 242kg Standard , 253kg Special 21.2 litres from $ 34,990 plus ORC Harley Davidson www . harley-davidson . com
QUICK QUOTE
H-D PAN AMERICA $ 34,990 + ORC Monthly premium $ 91.67 Excess $ 500
Agreed Value Full Cover premium including Apparel cover , Roadside Assistance , Track Day cover , Keys and Locks cover , Completion of Journey costs , Salvage Costs . The quoted premium is based on the following assumptions : Experienced rider , over 30 , living in Auckland , Full NZ Motorcycle Licence , no claims or convictions within the last 5 years , private use only .
