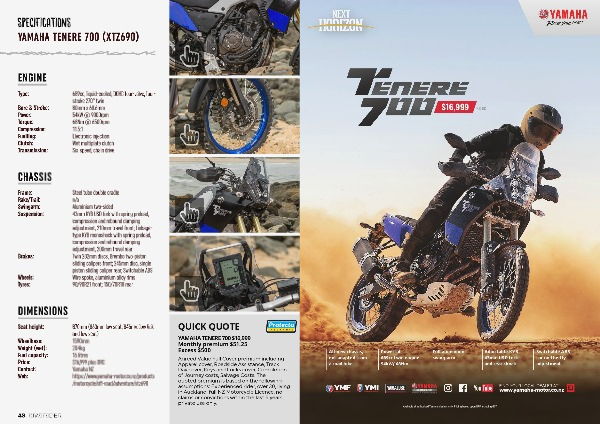

KIWI RIDER 12 2019 VOL1 | Page 48
SPECIFICATIONS
YAMAHA TENERE 700 (XTZ690)
ENGINE
Type:
689cc, liquid-cooled, DOHC four-valve, four-
stroke 270° twin
Bore & Stroke:
80mm x 68.6mm
Power: 54kW @ 9000rpm
Torque:
68Nm @ 6500rpm
Compression:
11.5:1
Fuelling:
Electronic injection
Clutch: Wet multiplate clutch
Transmission:
Six-speed, chain drive
CHASSIS
Frame:
Steel tube double cradle
Rake/Trail: n/a
Swingarm: Aluminium two-sided
Suspension:
43mm KYB USD fork with spring preload,
compression and rebound damping
adjustment, 210mm travel front; Linkage-
type KYB monoshock with spring preload,
compression and rebound damping
adjustment, 200mm travel rear
Brakes: Twin 282mm discs, Brembo two-piston
sliding calipers front; 245mm disc, single
piston sliding caliper rear; Switchable ABS
Wheels:
Wire spoke, aluminium alloy rims
Tyres: 90/90R21 front; 150/70R18 rear
DIMENSIONS
Seat height: 870mm (863mm low seat, 845mm low link
and low seat)
Wheelbase: 1590mm
Weight (wet):
204kg
Fuel capacity:
16 litres
Price:
$16,999 plus ORC
Contact:
Yamaha NZ
Web: https://www.yamaha-motor.co.nz/products
/motorcycle/off-road/adventure/xtz690
48 KIWI RIDER
QUICK QUOTE
YAMAHA TENERE 700 $16,999
Monthly premium $51.25
Excess $500
Agreed Value Full Cover premium including
Apparel cover, Roadside Assistance, Track
Day cover, Keys and Locks cover, Completion
of Journey costs, Salvage Costs. The
quoted premium is based on the following
assumptions: Experienced rider, over 30, living
in Auckland, full NZ Motorcycle Licence, no
claims or convictions within the last 5 years,
private use only.
