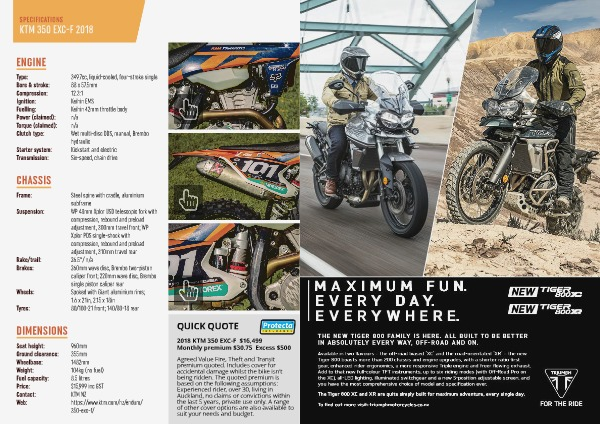

SPECIFICATIONS
KTM 350 EXC-F 2018
ENGINE
Type:
349.7cc, liquid-cooled, four-stroke single
Bore & stroke:
88 x 57.5mm
Compression:
12.3:1
Ignition:
Keihin EMS
Fuelling: Keihin 42mm throttle body
Power (claimed):
n/a
Torque (claimed):
n/a
Clutch type:
Wet multi-disc DDS, manual, Brembo
hydraulic
Starter system:
Kickstart and electric
Transmission:
Six-speed, chain drive
CHASSIS
Frame:
Steel spine with cradle, aluminium
subframe
Suspension: WP 48mm Xplor USD telescopic fork with
compression, rebound and preload
adjustment, 300mm travel front; WP
Xplor PDS single-shock with
compression, rebound and preload
adjustment, 310mm travel rear
Rake/trail: 26.5°/ n/a
Brakes:
260mm wave disc, Brembo two-piston
caliper front; 220mm wave disc, Brembo
single piston caliper rear
Wheels:
Spoked with Giant aluminium rims;
1.6 x 21in, 2.15 x 18in
Tyres:
80/100-21 front; 140/80-18 rear
DIMENSIONS
Seat height:
960mm
Ground clearance:
355mm
Wheelbase: 1482mm
Weight:
104kg (no fuel)
Fuel capacity:
8.5 litres
Price:
$15,999 inc GST
Contact: KTM NZ
Web:
https://www.ktm.com/nz/enduro/
350-exc-f/
