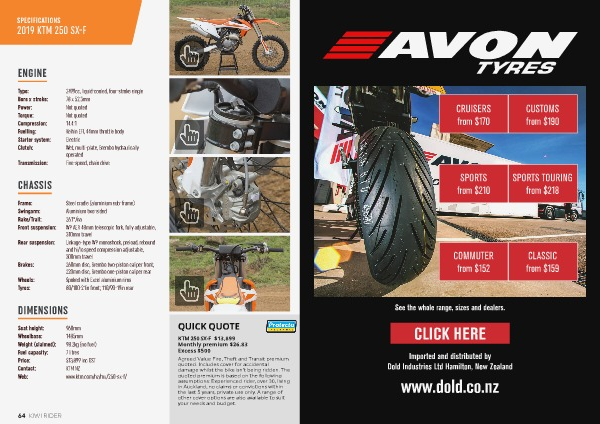

SPECIFICATIONS
2019 KTM 250 SX-F
ENGINE
Type: 249.9cc, liquid-cooled, four-stroke single
Bore x stroke:
78 x 52.3mm
Power:
Not quoted
Torque:
Not quoted
Compression: 14.4:1
Fuelling:
Keihin EFI, 44mm throttle body
Starter system: Electric
Clutch:
Wet, multi-plate, Brembo hydraulically
operated
Transmission:
Five-speed, chain drive
CHASSIS
Frame:
Steel cradle (aluminium sub-frame)
Swingarm:
Aluminium two-sided
Rake/Trail: 26.1°/na
Front suspension: WP AER 48mm telescopic fork, fully adjustable,
310mm travel
Rear suspension: Linkage-type WP monoshock, preload, rebound
and hi/lo speed compression adjustable,
300mm travel
Brakes: 260mm disc, Brembo two-piston caliper front;
220mm disc, Brembo one-piston caliper rear
Wheels: Spoked with Excel aluminium rims
Tyres:
80/100-21in front; 110/90-19in rear
DIMENSIONS
Seat height: 960mm
Wheelbase: 1485mm
Weight (claimed): 98.2kg (no fuel)
Fuel capacity:
7 litres
Price:
$13,899 inc GST
Contact:
KTM NZ
Web: www.ktm.com/nz/mx/250-sx-f/
64 KIWI RIDER
QUICK QUOTE
KTM 250 SX-F $13,899
Monthly premium $26.83
Excess $500
Agreed Value Fire, Theft and Transit premium
quoted. Includes cover for accidental
damage whilst the bike isn’t being ridden. The
quoted premium is based on the following
assumptions: Experienced rider, over 30, living
in Auckland, no claims or convictions within
the last 5 years, private use only. A range of
other cover options are also available to suit
your needs and budget.
