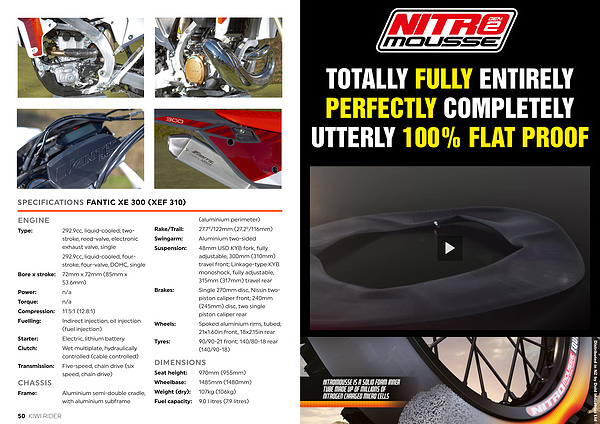

SPECIFICATIONS FANTIC XE 300 ( XEF 310 )
ENGINE
Type :
292.9cc , liquid-cooled , twostroke , reed-valve , electronic exhaust valve , single 292.9cc , liquid-cooled , fourstroke , four-valve , DOHC , single
Bore x stroke : 72mm x 72mm ( 85mm x
53.6mm ) Power : n / a Torque : n / a Compression : 11.5:1 ( 12.8:1 ) Fuelling : Indirect injection , oil injection
( fuel injection ) Starter : Electric , lithium battery Clutch : Wet multiplate , hydraulically controlled ( cable controlled ) Transmission : Five-speed , chain drive ( six
CHASSIS speed , chain drive )
Frame : Aluminium semi-double cradle , with aluminium subframe
( aluminium perimeter ) Rake / Trail : 27.7 °/ 122mm ( 27.2 °/ 116mm ) Swingarm : Suspension :
Brakes :
Aluminium two-sided 48mm USD KYB fork , fully adjustable , 300mm ( 310mm ) travel front ; Linkage-type KYB monoshock , fully adjustable , 315mm ( 317mm ) travel rear Single 270mm disc , Nissin twopiston caliper front ; 240mm ( 245mm ) disc , two single piston caliper rear
Wheels : Spoked aluminium rims , tubed ;
Tyres :
DIMENSIONS
21x1.60in front , 18x2.15in rear 90 / 90-21 front ; 140 / 80-18 rear ( 140 / 90-18 )
Seat height : 970mm ( 955mm )
Wheelbase : |
1485mm ( 1480mm ) |
Weight ( dry ): |
107kg ( 106kg ) |
Fuel capacity : |
9.0 l itres ( 7.9 litres ) |
