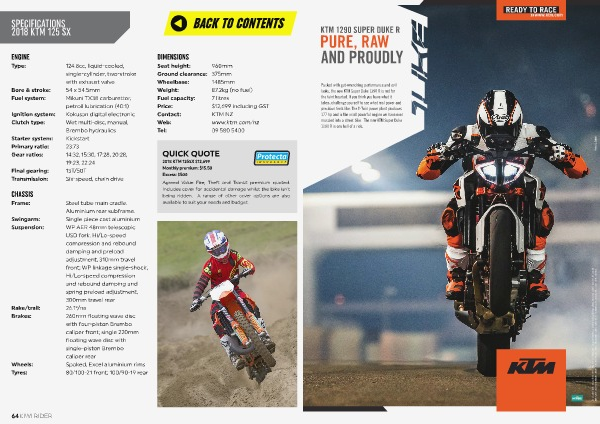

SPECIFICATIONS
2018 KTM 125 SX
KTM 1290 SUPER DUKE R
DIMENSIONS
Type: 124.8cc, liquid-cooled,
single-cylinder, two-stroke
with exhaust valve
Bore & stroke:
54 x 54.5mm
Fuel system:
Mikuni TX38 carburettor,
petroil lubrication (40:1)
Ignition system:
Kokusan digital electronic
Clutch type:
Wet multi-disc, manual,
Brembo hydraulics
Starter system: Kickstart
Primary ratio: 23:73
Gear ratios:
14:32, 15:30, 17:28, 20:28,
19:23, 22:24
Final gearing: 13T/50T
Transmission:
Six-speed, chain drive Seat height:
960mm
Ground clearance: 375mm
Wheelbase:
1485mm
Weight:
87.2kg (no fuel)
Fuel capacity:
7 litres
Price:
$12,699 including GST
Contact:
KTM NZ
Web:
www.ktm.com/nz
Tel:
09 580 5400
Frame:
Steel tube main cradle.
Aluminium rear subframe.
Swingarm:
Single piece cast aluminium
Suspension:
WP AER 48mm telescopic
USD fork. Hi/Lo-speed
compression and rebound
damping and preload
adjustment, 310mm travel
front; WP linkage single-shock,
Hi/Lo-speed compression
and rebound damping and
spring preload adjustment,
300mm travel rear
Rake/trail:
26.1°/na
Brakes:
260mm floating wave disc
with four-piston Brembo
caliper front; single 220mm
floating wave disc with
single-piston Brembo
caliper rear
Wheels:
Spoked, Excel aluminium rims
Tyres:
80/100-21 front; 100/90-19 rear
64KIWI RIDER
2018 KTM 125SX $12,699
Monthly premium: $15.50
Excess: $500
Agreed Value Fire, Theft and Transit premium quoted.
Includes cover for accidental damage whilst the bike isn’t
being ridden. A range of other cover options are also
available to suit your needs and budget.
CHASSIS
QUICK QUOTE
Packed with gut-wrenching performance and evil
looks, the new KTM Super Duke 1290 R is not for
the faint hearted. If you think you have what it
takes, challenge yourself to see what real power and
precision feels like. The V-Twin power plant produces
177 hp and is the most powerful engi ne we have ever
muscled into a street bike. The new KTM Super Duke
1290 R is one hell of a ride.
ENGINE
PURE, RAW
AND PROUDLY
