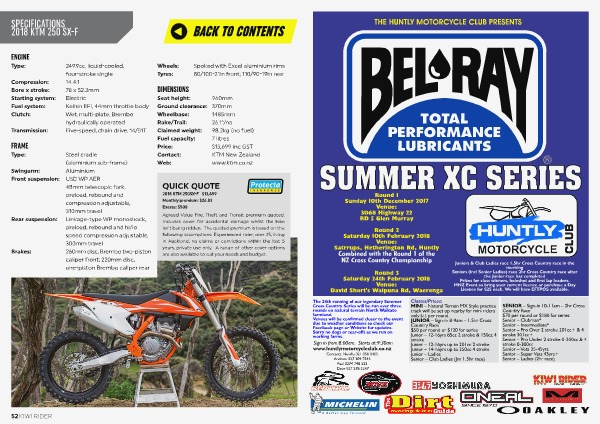

SPECIFICATIONS
2018 KTM 250 SX-F
ENGINE
Type: 249.9cc, liquid-cooled,
four-stroke single
Compression: 14.4:1
Bore x stroke:
78 x 52.3mm
Starting system: Electric
Fuel system:
Keihin EFI, 44mm throttle body
Clutch:
Wet, multi-plate, Brembo
hydraulically operated
Transmission:
Five-speed, chain drive, 14/51T
FRAME
Type:
Steel cradle
(aluminium sub-frame)
Swingarm:
Aluminium
Front suspension: USD WP AER
48mm telescopic fork,
preload, rebound and
compression adjustable,
310mm travel
Rear suspension: Linkage-type WP monoshock,
preload, rebound and hi/lo
speed compression adjustable,
300mm travel
Brakes:
260mm disc, Brembo two-piston
caliper front; 220mm disc,
one-piston Brembo caliper rear
52 KIWI RIDER
Wheels:
Tyres:
Spoked with Excel aluminium rims
80/100-21in front; 110/90-19in rear
DIMENSIONS
Seat height:
960mm
Ground clearance: 370mm
Wheelbase:
1485mm
Rake/Trail: 26.1°/na
Claimed weight:
98.2kg (no fuel)
Fuel capacity:
7 litres
Price:
$13,699 inc GST
Contact:
KTM New Zealand
Web:
www.ktm.co.nz
