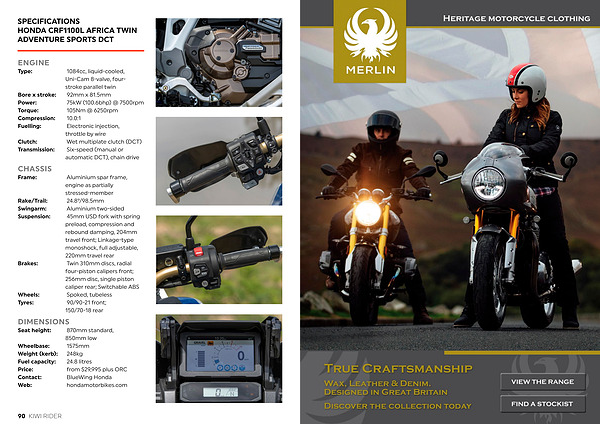

SPECIFICATIONS HONDA CRF1100L AFRICA TWIN ADVENTURE SPORTS DCT
ENGINE
Type :
1084cc , liquid-cooled ,
Uni-Cam 8-valve , fourstroke
parallel twin
Bore x stroke :
92mm x 81.5mm
Power :
75kW ( 100.6bhp ) @ 7500rpm
Torque :
105Nm @ 6250rpm
Compression :
10.0:1
Fuelling :
Electronic injection ,
throttle by wire
Clutch :
Wet multiplate clutch ( DCT )
Transmission :
Six-speed ( manual or
automatic DCT ), chain drive
CHASSIS
Frame : Aluminium spar frame , engine as partially stressed-member Rake / Trail : 24.8 °/ 98.5mm Swingarm : Aluminium two-sided Suspension : 45mm USD fork with spring preload , compression and rebound damping , 204mm travel front ; Linkage-type monoshock , full adjustable , 220mm travel rear
Brakes :
Twin 310mm discs , radial four-piston calipers front ; 256mm disc , single piston caliper rear ; Switchable ABS Wheels : Spoked , tubeless Tyres : 90 / 90-21 front ;
150 / 70-18 rear
DIMENSIONS
Seat height :
870mm standard ,
850mm low
Wheelbase :
1575mm
Weight ( kerb ):
248kg
Fuel capacity :
24.8 litres
Price :
from $ 29,995 plus ORC
Contact :
BlueWing Honda
Web :
hondamotorbikes . com
