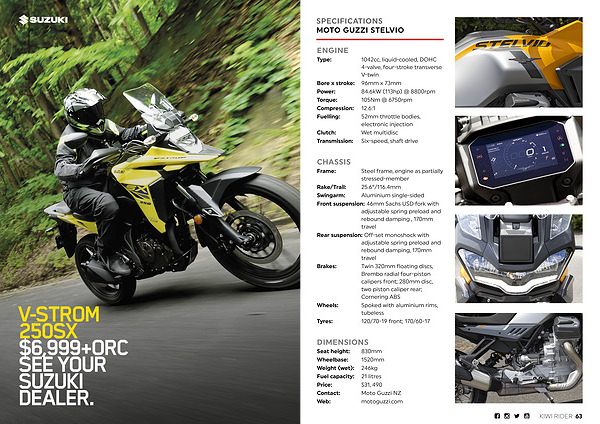

SPECIFICATIONS MOTO GUZZI STELVIO
ENGINE
Type:
Bore x stroke: Power: Torque: Compression: 12.6:1
1042cc, liquid-cooled, DOHC 4-valve, four-stroke transverse V-twin 96mm x 73mm 84.6kW( 113hp) @ 8800rpm 105Nm @ 6750rpm
Fuelling: 52mm throttle bodies, electronic injection
Clutch: Transmission:
Wet multidisc Six-speed, shaft drive
CHASSIS
Frame:
Rake / Trail: Swingarm:
Steel frame, engine as partially stressed-member 25.6 °/ 116.4mm Aluminium single-sided
Front suspension: 46mm Sachs USD fork with adjustable spring preload and rebound damping, 170mm travel
Rear suspension: Off-set monoshock with adjustable spring preload and rebound damping, 170mm travel
Brakes: Twin 320mm floating discs, Brembo radial four-piston calipers front; 280mm disc, two piston caliper rear; Cornering ABS
Wheels: Spoked with aluminium rims, tubeless Tyres: 120 / 70-19 front; 170 / 60-17
DIMENSIONS
Seat height: 830mm Wheelbase: Weight( wet): Fuel capacity:
1520mm 246kg 21 litres Price: $ 31, 490 Contact: Web:
Moto Guzzi NZ motoguzzi. com
